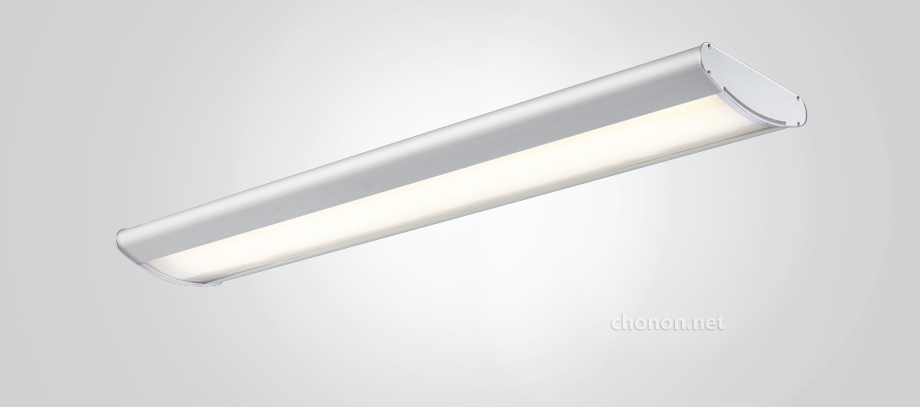

Oval Surface Mounted LED Light
For commercial or public indoor spaces that require ceiling mounting LED light fixtures, this should not be missed out. The 100% extruded aluminum fitting body gives this product even more reliability on quality.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension/Surface mounted installation
Benefits:
●modern aesthetic in ultimate simplicity
●Long working life and high efficiency for energy saving
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Key Applications:
Office buildings, Education, Hallways and Corridors, etc
Specification:
Other wattages and lumens are available on request.
For commercial or public indoor spaces that require ceiling mounting LED light fixtures, this should not be missed out. The 100% extruded aluminum fitting body gives this product even more reliability on quality.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension/Surface mounted installation
Benefits:
●modern aesthetic in ultimate simplicity
●Long working life and high efficiency for energy saving
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Key Applications:
Office buildings, Education, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-136H |
1196x236x65 |
36w |
3600lm |
3000-6500K |
>80 |
>0.9 |
130.5x34.5x25 |
2pcs |
|
MZJ-LED-140H |
1196x236x65 |
40w |
4000lm |
3000-6500K |
>80 |
>0.9 |
130.5x34.5x25 |
2pcs |
|
MZJ-LED-145H |
1196x236x65 |
45w |
4500lm |
3000-6500K |
>80 |
>0.9 |
130.5x34.5x25 |
2pcs |
