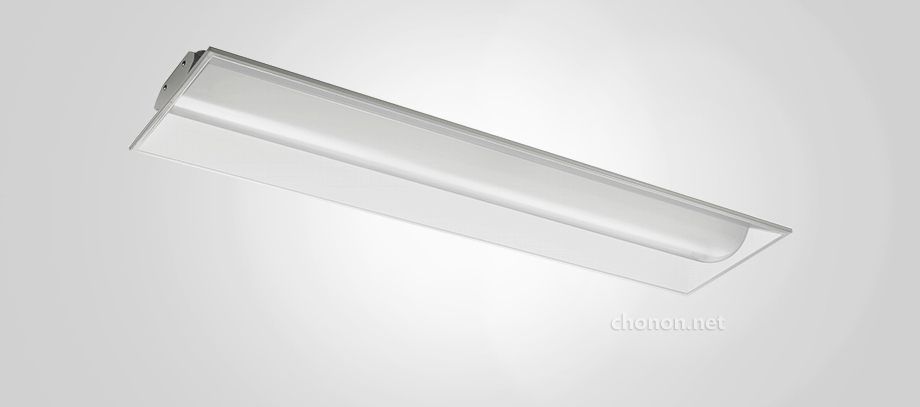

Features:
●High transmission PMMA opal diffuser in arc shape
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Long working life with high efficiency for energy saving
Mounting: Recessed
Key Applications:
Office buildings, Bank, schools, universities, libraries, hospitals, etc.
Specification:
●High transmission PMMA opal diffuser in arc shape
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Long working life with high efficiency for energy saving
Mounting: Recessed
Key Applications:
Office buildings, Bank, schools, universities, libraries, hospitals, etc.
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQG-LED-218F |
1196x296x70 |
36w |
3650lm |
3000-6500K |
>80 |
>0.9 |
125x35x19 |
2pcs |
|
MQG-LED-220F |
1196x296x70 |
40w |
4050lm |
3000-6500K |
>80 |
>0.9 |
125x35x19 |
2pcs |
Other lengths, wattages and lumens are available on request.
