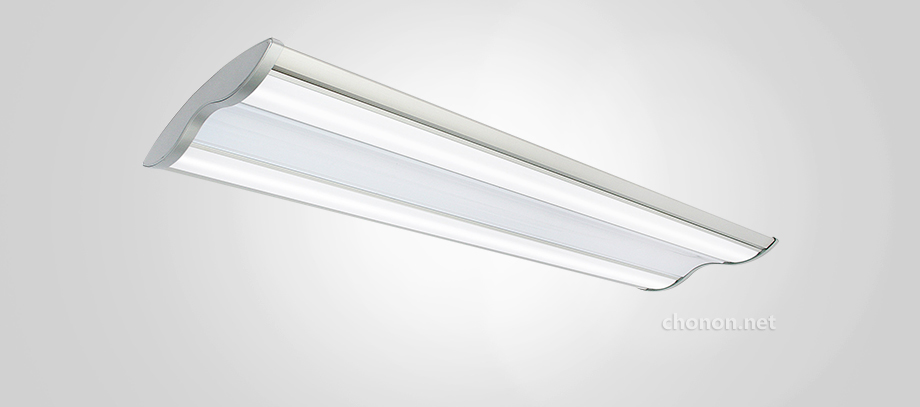

L22 LED Pendant Light
This double bands suspended LED fitting is ideal for those projects requiring more light surface in one pendant fitting. Covering a width up to 300mm, this pendant still holds its simplicity and modernity.
Features:
●Two bands to light
●Premium aluminum housing
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension installation
Benefits:
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life with high efficiency for energy saving
Key Applications:
Shopping Centers, Supermarkets, Office buildings , etc
Specification:
This double bands suspended LED fitting is ideal for those projects requiring more light surface in one pendant fitting. Covering a width up to 300mm, this pendant still holds its simplicity and modernity.
Features:
●Two bands to light
●Premium aluminum housing
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension installation
Benefits:
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life with high efficiency for energy saving
Key Applications:
Shopping Centers, Supermarkets, Office buildings , etc
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-218I |
1168x300x60 |
2x18w |
3600lm |
3000-6500K |
>80 |
>0.9 |
121x38x27 |
2pcs |
|
MZJ-LED-220I |
1168x300x60 |
2x20w |
4000lm |
3000-6500K |
>80 |
>0.9 |
121x38x27 |
2pcs |
|
MZJ-LED-224I |
1168x300x60 |
2x24w |
4320lm |
3000-6500K |
>80 |
>0.9 |
121x38x27 |
2pcs |
Other wattages and lumens are available on request.
