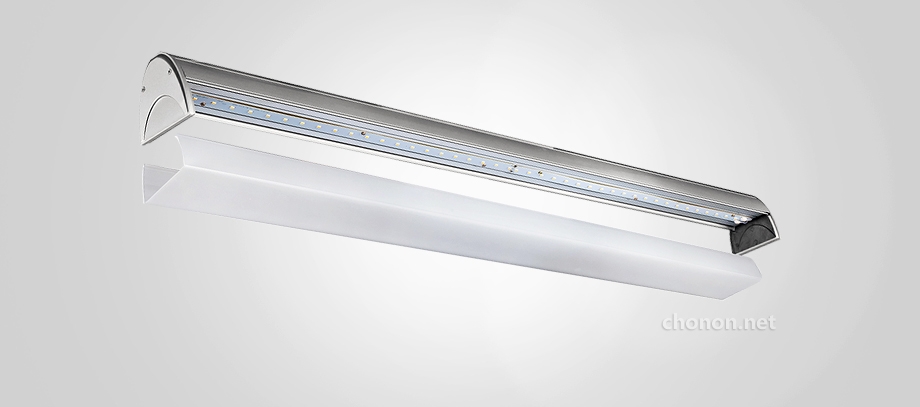

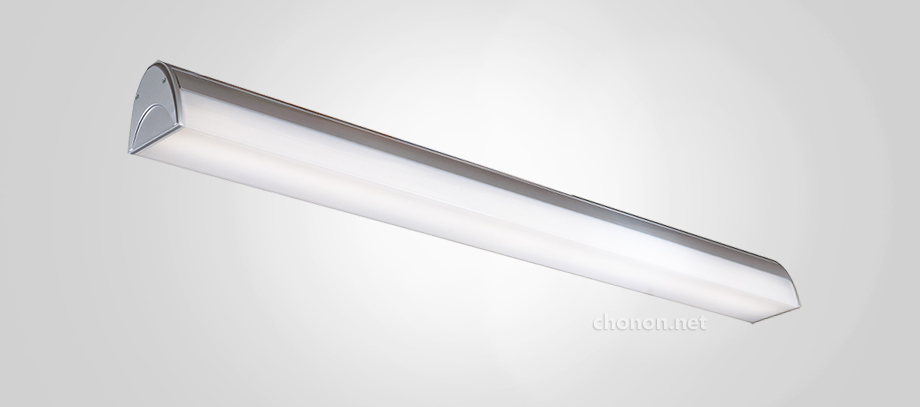

L23 LED Office Light
This LED light is another solutions we offer to those look for wrapped diffuser design.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available
●Suspension/Surface mounted installation
Benefits:
●Long working life with high efficiency for energy saving
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
Specification:
This LED light is another solutions we offer to those look for wrapped diffuser design.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available
●Suspension/Surface mounted installation
Benefits:
●Long working life with high efficiency for energy saving
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-136J |
1155x90x90 |
36w |
3400lm |
3000-6500K |
>80 |
>0.9 |
122x31x29 |
4pcs |
|
MZJ-LED-140J |
1155x90x90 |
40w |
3600lm |
3000-6500K |
>80 |
>0.9 |
122x31x29 |
4pcs |
|
MZJ-LED-145J |
1155x90x90 |
45w |
4200lm |
3000-6500K |
>80 |
>0.9 |
122x31x29 |
4pcs |
Other wattages and lumens are available on request.
