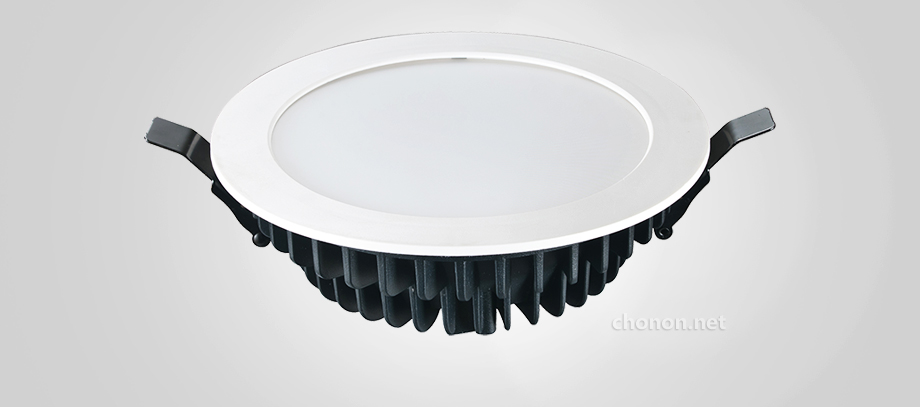

LED downlight-B Series
Features:
●Die cast heat sink and polycarbonate outer ring.
●High transmission opal diffuser
●Low profile in the ceiling with remote driver
●LED chips options: Samsung, Epistar
●CRI>80
●P44 when installed from below
●high performance and Cost effective
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
Features:
●Die cast heat sink and polycarbonate outer ring.
●High transmission opal diffuser
●Low profile in the ceiling with remote driver
●LED chips options: Samsung, Epistar
●CRI>80
●P44 when installed from below
●high performance and Cost effective
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photoetric: |
Drawing: |
 |
 |
|
Product Code |
Diameter ? (mm) |
Cutout ? (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0412B |
146 |
120 |
12w |
1065 |
3000-6500K |
>80 |
>0.9 |
47x32x27.5 |
18 |
|
MQT-LED-0518B |
166 |
140 |
18w |
1574 |
3000-6500K |
>80 |
>0.9 |
38x38x27.5 |
12 |
|
MQT-LED-0630B |
195 |
170 |
30w |
2700 |
3000-6500K |
>80 |
>0.9 |
62x45x37.5 |
12 |
Other wattages and lumens are available on request.
