Features:

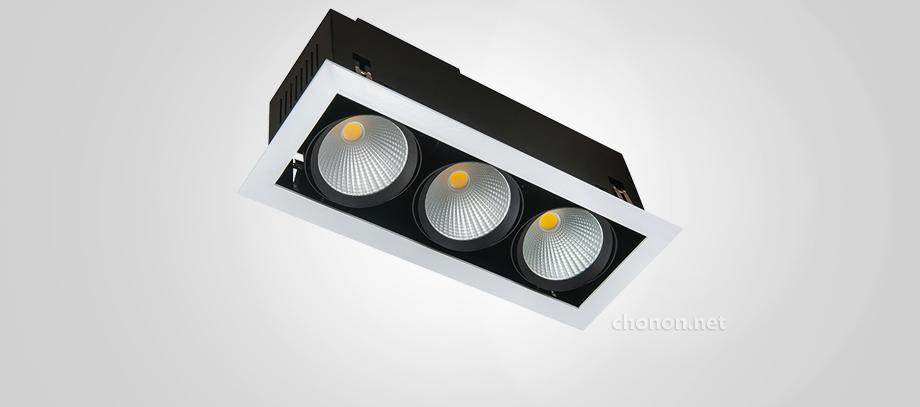

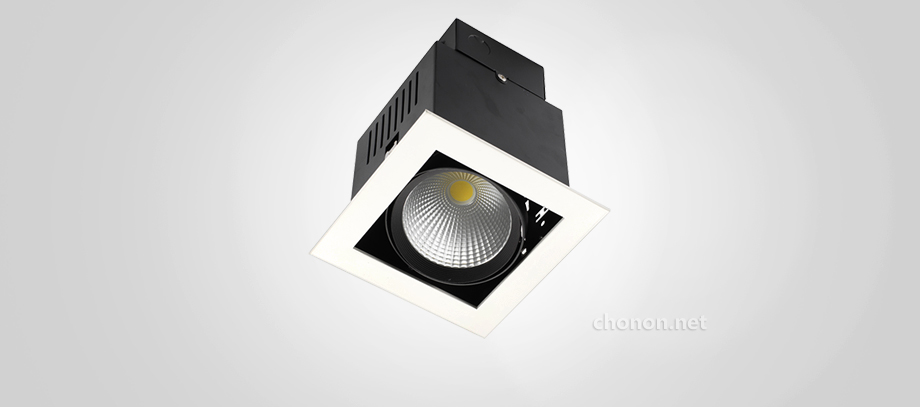

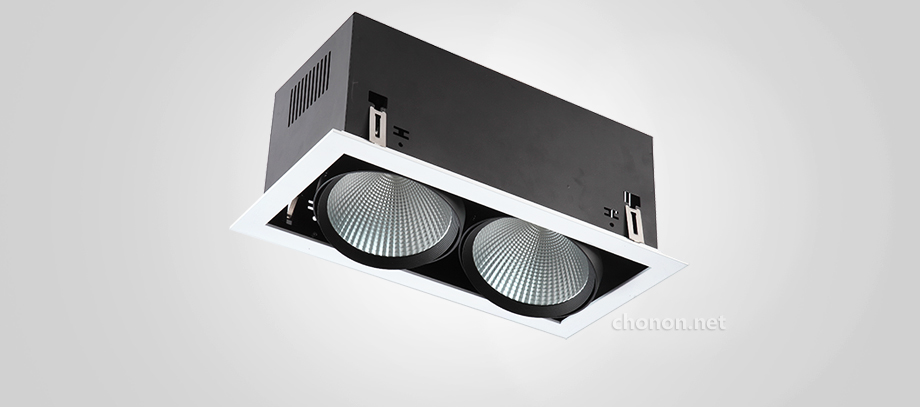

●Adjustable downlight with one “head”, two “heads” and three “heads”
●High efficiency aluminum reflector with glass
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective,
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter ? (mm) |
Cutout ? (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0415P |
160x160 |
130x130 |
176 |
15w |
1350 |
3000-6500K |
>80 |
>0.9 |
53x36x40 |
12 |
|
MQT-LED-0530P |
280x160 |
250x130 |
176 |
30w |
2788 |
3000-6500K |
>80 |
>0.9 |
36x31x40 |
12 |
|
MQT-LED-0645P |
395x160 |
365x130 |
176 |
45W |
3800 |
3000-6500K |
>80 |
>0.9 |
42.5x36x40 |
4 |
Other wattages and lumensare available on request.
