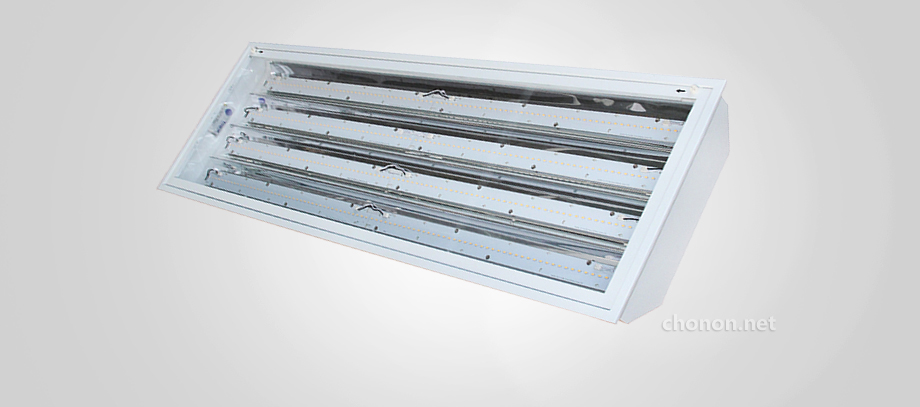

LED high bay
Features:
●Exceptional performance with 110lm/w
●High efficiency anodized aluminum reflector and PMMA transparent diffuser
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting: surface mounted/ suspension
Key Applications:
Warehouse, factory workshop , etc.
Specification:
Features:
●Exceptional performance with 110lm/w
●High efficiency anodized aluminum reflector and PMMA transparent diffuser
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting: surface mounted/ suspension
Key Applications:
Warehouse, factory workshop , etc.
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQG-LED-170 |
1250x400x100 |
170w |
18700 |
3000-6500K |
>80 |
>0.9 |
128x42.5x11 |
1pc |
Other lengths, wattages and lumens are available on request.
